31 扁插類
 |
 |
| 產品編號 Part No. |
產品名稱 Part Name |

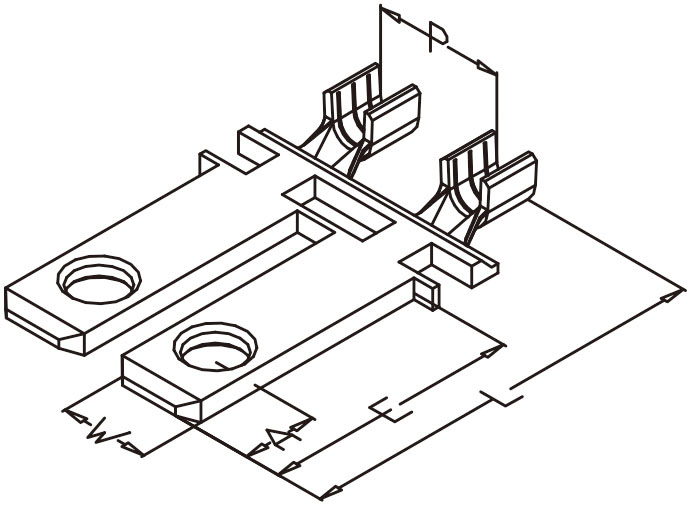

板厚 | 間距 | 尺寸(Dimension) | 適用電線 Suitbale Wire AWG# |
材質/表面/處理 Material Finish |
每卷/數量 Paching |
備註 Remark |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| T | P | L | E | A | W | ||||||
| 311113 | KDG 50T | 1.46 | 8.25 | 29 | 18 | 5.4 | 6.3 | 16-18 | Brass | 5,000 |  |
| 311213 | KDG 50T | 1.46 | 8.25 | 29 | 18 | 5.4 | 6.3 | 16-18 | Brass/Nickel | 5,000 | |
| 311131 | KDG 50T-2 | 1.46 | 8.25 | 29 | 18 | 5.4 | 6.3 | 14 | Brass | 4,000 | |
| 311250 | KDG 50T-2 | 1.46 | 8.25 | 29 | 18 | 5.4 | 6.3 | 14 | Brass/Nickel | 4,000 | |
| 311214 | KDG 50T-1 | 1.46 | 9.0 | 29 | 18 | 5.4 | 6.3 | 14 | Brass/Nicke | 4,000 | |
| 311280 | KDG 50T-1#12 | 1.46 | 9.0 | 29 | 18 | 5.4 | 6.3 | 12 | Brass/Nickel | 4,000 | |
